JAMES PERSE
3337 N FITZHUGH AVE
Dallas, Texas
2798 sq. ft.
Apr 02 – Apr 08 | 2025
As-Built Plans
Project Overview
On a prominent Dallas corner lot, this 2,798 sq. ft. property, formerly a pet shop, is being redeveloped into a high-end retail store. With visible signage and adjacent parking, the site offers strong storefront visibility and customer access. DCMS conducted a comprehensive survey of architectural elements, façades, and building systems to deliver precise as-built documentation. This data supports design, permitting, and renovation, ensuring the space can be adapted for premium retail use while maintaining functional infrastructure.
Deliverables

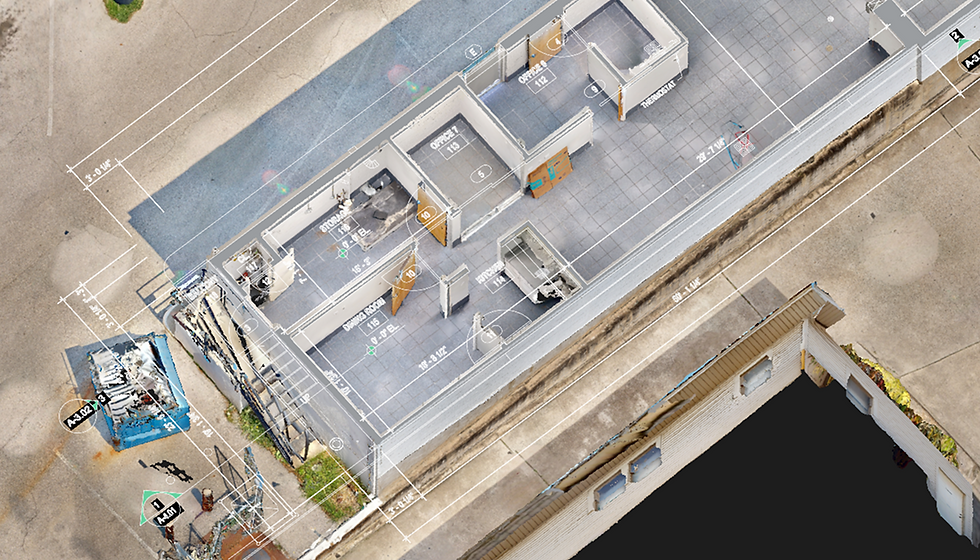

High-Resolution LiDAR Point Cloud: Accurate spatial data for as-built documentation
360° Digital Twin: Remote visualization tool for project stakeholders and designers
LOD 300 Revit Model – Full architectural representation 3D Online Visualization Model & Views
AutoCAD Drawings & PDF Sheets: Fully annotated and coordinated documentation
Our Role & Technology
DCMS executed a laser-based survey using Matterport Pro3 with LiDAR technology, ensuring millimeter-level accuracy for architectural and MEP elements. The resulting documentation provided the client with a reliable digital base for retail renovation and interior layout planning.
Documented electrical and plumbing systems, panels, and fixtures for coordination
Produced complete architectural sheets to aid design, permitting, and construction
Delivered outputs in Revit and SketchUp, enabling seamless integration into workflows
Key Challenges & Solutions
MEP System Mapping: Fixtures and panels carefully documented for design alignment
Retail Conversion Needs: Deliverables adapted to support layout and branding updates
Corner Lot Visibility: Façade and signage emphasized in elevations for design planning
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Mashawnta Armstrong
Project Manager, Development and Construction at James Perse
“DCMS has been instrumental to our global store openings for years”
From Paris to Abu Dhabi, Miami to Las Vegas, their team consistently captures existing conditions and delivers precise as-built documentation — fast. They’ve helped us streamline planning and construction across multiple continents, making it easier to coordinate with architects, contractors, and our internal teams. Their speed and reliability are a major asset on every new build.
