HISTORIC HOUSE IN ALLAPATTAH
Miami, Florida
680 sq. ft
Oct 19- Oct 26 | 2021
As-Built Plans
Project Overview
DCMS performed a high-precision 3D scan of this compact residential structure located in Miami’s Allapattah neighborhood. The goal was to provide a clean digital twin and LOD 300 Revit model to support an upcoming renovation and permit submission.
Deliverables
High-Density Point Cloud Data: Clean and structured 3D scan of building geometry

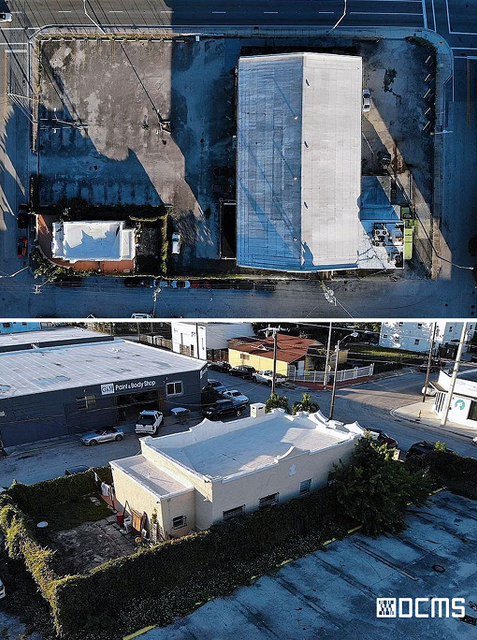

Drone-Captured Orthophotos: Aerial imagery for accurate roof and site reference
LOD 300 Revit Model: Architectural model for renovation and permit documentation
Matterport Virtual Walkthrough
Our Role & Technology
To support renovation planning and permit documentation, DCMS executed a full 3D reality capture of this small-scale residence, delivering accurate, design-ready outputs.
LiDAR scanning with Matterport Pro 3 to capture all architectural details
LOD 300 Revit model developed in Autodesk Revit for documentation.
Matterport Pro3 walkthrough for remote stakeholder visualization.
Key Challenges & Solutions
Limited scanable area & tight interior layout: Careful scanner placement ensured complete coverage.
Fast turnaround for permit use: Full model and documentation delivered in under one week.
Detail accuracy in small structure: LiDAR resolution allowed precise capture of structural geometry.
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Andrea Ghouzi
Project Designer at Berenblum Busch Architects
“Excellent results and fast turnaround.”
"We were very happy with the work done by DCMS. Antonio and his team delivered excellent results, and we truly appreciate their fast turnaround."
