KINGS POINT BEACHFRONT RESIDENCE
Kings Point, New York
7788 sq. ft.
Aug 04 - Aug 14 | 2025
As-Built Plans
Project Overview

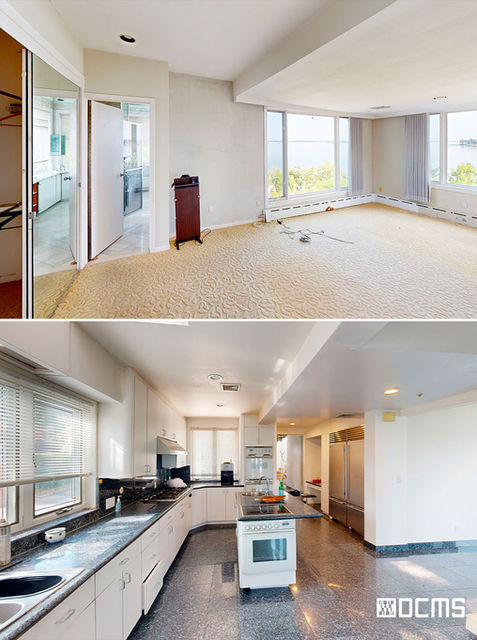

Located in the prestigious neighborhood of Kings Point, this residential project covers 7,788 sq. ft. across a main house and a separate pool house. Both structures feature three levels, including basements, communal zones, and private suites. The main house showcases a striking circular staircase with double-height ceilings, while the pool house combines social areas, technical spaces, and bedrooms with sea views. Extensive terraces, green areas, and private beach access required comprehensive surveying for precise as-built documentation.
Deliverables
High-Resolution LiDAR Point Cloud: Accurate spatial data for as-built documentation
360° Digital Twin: Remote visualization tool for project stakeholders and designers
LOD 300 Revit Model: 3D Online Visualization Model & Views for design and coordination

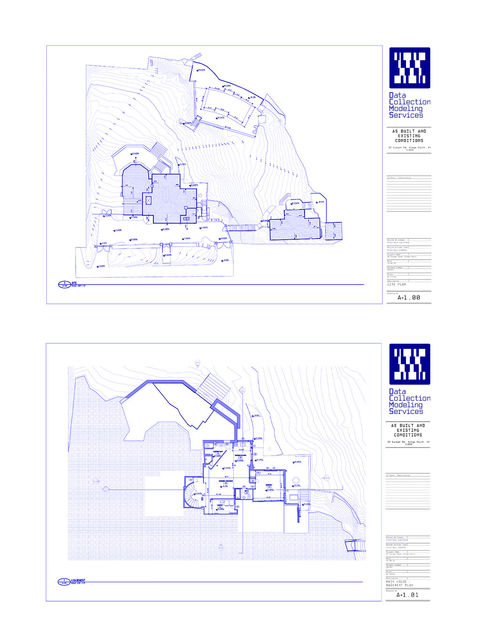

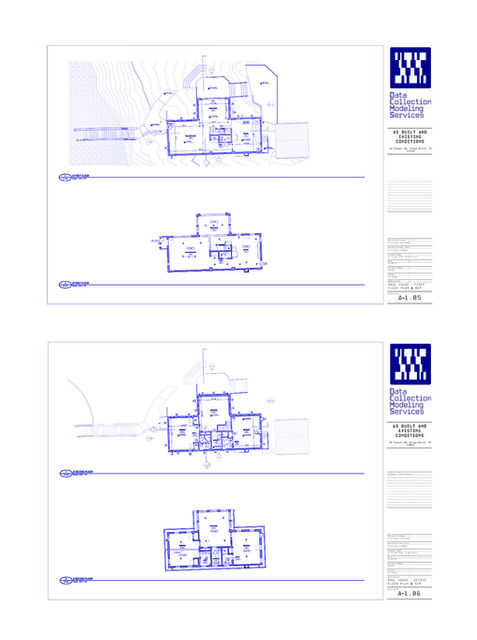

AutoCAD Drawings & PDF Sheets: Fully annotated and coordinated documentation
Our Role & Technology
DCMS executed a 10-day survey combining interior and exterior LiDAR scanning with Revit modeling, ensuring complete coverage of architectural and structural details for both residences.
Captured full exteriors and all façades to document ornamental and structural features
Modeled interior layouts, stairs, and pitched roofs with LOD 300 accuracy
Exported CAD & PDF sets for design, renovation, and project planning purposes
Key Challenges & Solutions
Large multi-building scope: Modeled main and pool houses with consistent accuracy.
Complex vertical circulation: Circular staircase and basements required precise detailing.
Outdoor + waterfront conditions: Managed scanning around terraces, pools, and sea views.
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Christine Cheong
Architect at Sensus Design Studio
“We love the quality of DCMS work and look forward to new projects.”
We have no additional feedback from our side, as we are very happy with the quality of work DCMS delivers. Our team truly appreciates the professionalism and accuracy consistently demonstrated. We are excited to kick off another project together soon, just waiting for our client to confirm the final details before moving ahead.
