SUPERMARKET BUILDING IN BRADENTON
Bradenton, Florida
64 115 sq. ft.
Apr 07 – Apr 11 l 2025
As-Built Plans
Project Overview

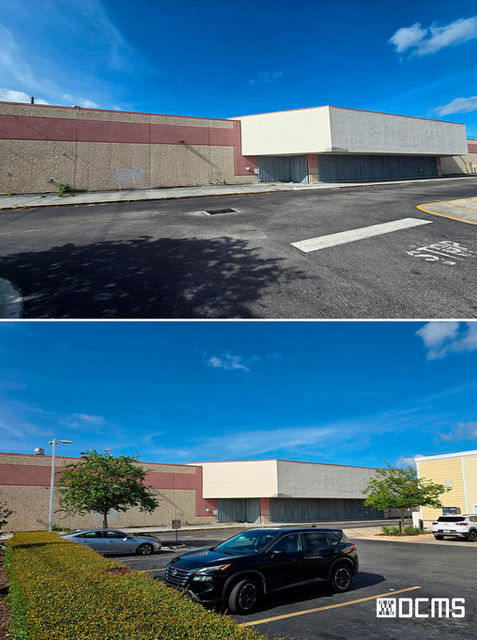

Located in Bradenton, Florida, this commercial property spans over 64,000 sq. ft. and features two floors with generous ceiling heights and open interior volumes. Though the space had been unoccupied for some time, its structure, including distinct upper-floor office areas and a large ground-level layout, remains integral to future renovation efforts. The scan aimed to document the building’s current state in preparation for complete restoration and redesign.
Deliverables
High-Resolution LiDAR Point Cloud: Accurate spatial data for as-built documentation
360° Digital Twin: Remote visualization tool for project stakeholders and designers
Architectural 2D CAD As-Built Documentation: Floor Plans, Roof Plan, Exterior Elevations
LOD 300 BIM Model: Full architectural Revit model structured for planning and renovations
Our Role & Technology
DCMS used LiDAR-based Matterport Pro3 technology to scan both levels of the building, ensuring comprehensive coverage despite low-light conditions. The resulting point cloud enabled the team to deliver precise and coordinated documentation for future design interventions.
Created a detailed set of architectural drawings from the point cloud, capturing walls, roof geometry, and elevation details.
Supported the development of elevation views directly within Revit, based on scan data.
Adapted scanning strategy to account for visibility challenges, ensuring accuracy in dark or inaccessible zones.
Key Challenges & Solutions
Low-Light Interior: Some building zones lacked lighting, but LiDAR ensured precise geometry capture.
Large-Scale Coordination: Multiple interior zones were documented with a structured, consistent workflow.
Scan-to-Revit Accuracy: Modeling directly from the point cloud guaranteed roof and elevation fidelity.
OUR WORKFLOW:Scan, Process,
3D Modeling and Deliver
Tom Rockwell
Founder at Rockwell Contracting, Inc.
"Clear communication and quick delivery made everything seamless."
Everything worked perfectly with the as-built plans DCMS provided. The process was smooth, efficient, and completed right on schedule. Their accuracy and professionalism made coordination easy, and I’ve already shared their contact with my architect for future projects.
