JAMES PERSE
SCOTTSDALE FASHION SQUARE

Arizona, Scottsdale

2492 sq. ft.

Dec 30 – Jan 06 l 2025

As-Built Plans

Aperçu du projet

Situated within a newly built development near Old Town Scottsdale, a district known for its shopping and entertainment, the 2,492 sq. ft. retail space was documented during its outfitting phase for a high-end fashion brand. The open-plan layout combines retail zones with integrated service areas, requiring precise coordination of lighting, signage, and security systems. DCMS produced accurate documentation to support interior design and technical planning, ensuring the space is ready for brand-specific implementation.

Livrables

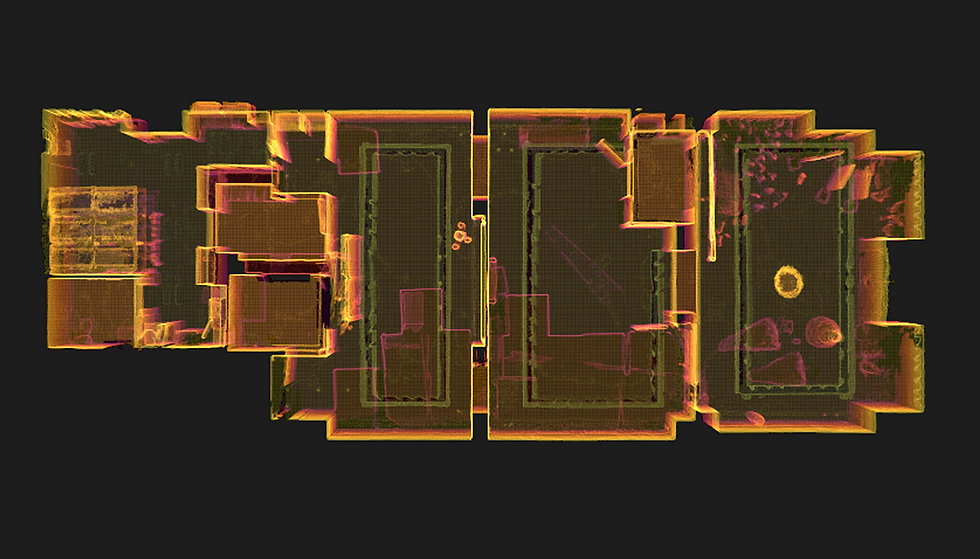

High-Resolution LiDAR Point Cloud: Accurate spatial data for as-built documentation

360° Digital Twin: Remote visualization tool for project stakeholders and designers

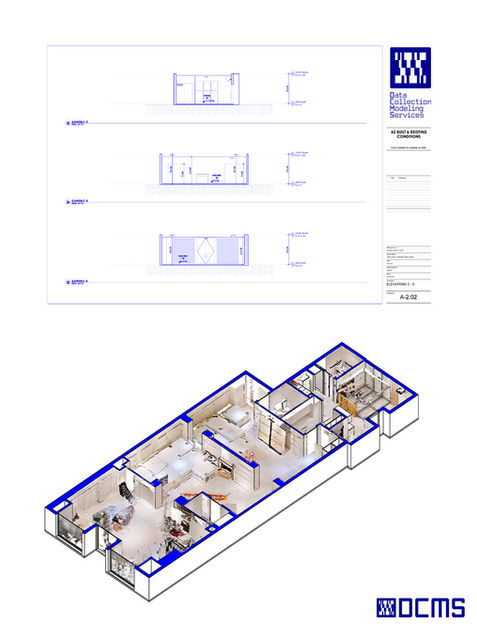

Architectural As-Built Documentation: Floor Plans, Interior Elevations

CAD Drawings & PDF Sheets: Fully annotated and coordinated documentation

Notre rôle et notre technologie

Using LiDAR-enabled Matterport Pro3 scanning, DCMS delivered a high-precision digital twin and detailed 2D documentation tailored to the client’s retail standards. The point cloud served as the foundation for a clean, accurate Revit model used to generate CAD outputs.

Modeled ceiling fixtures, CCTV, EXIT signs, smoke detectors, and access hatches

Produced floor plans and elevations detailing outlets, switches, and plumbing elements

Ensured documentation accuracy through cross-checking with 360° walkthrough data

Principaux défis et solutions

Ceiling Complexity: MEP components documented directly from LiDAR scan for precision

Varying Heights: Interior elevations clarified mechanical fixture and ceiling differences

Electrical Accuracy: Outlet and switch locations validated with 360° walkthrough review

Obtenir un devis

NOTRE FLUX DE TRAVAIL : Numériser, Traiter,
Modélisation et livraison 3D

Mashawnta Armstrong

Project Manager, Development and Construction at James Perse

“DCMS has been instrumental to our global store openings for years”

From Paris to Abu Dhabi, Miami to Las Vegas, their team consistently captures existing conditions and delivers precise as-built documentation — fast.  They’ve helped us streamline planning and construction across multiple continents, making it easier to coordinate with architects, contractors, and our internal teams.  Their speed and reliability are a major asset on every new build.
