DAYLIGHT COFFEE 
PINEHURTS DRIVE, BASEHOR

Basehor, Kansas

1750 sq. ft.

May 02 – May 07 l 2024

As-Built Plans

Aperçu du projet

Located in Basehor, Kansas, this 1,750 sq. ft. coffee shop sits on a visible corner lot with outdoor seating and private parking. Large floor-to-ceiling windows maximize natural light, creating a warm customer environment. The layout integrates a front-facing service area, prep and storage zones, restroom, and BOH facilities. Designed as a compact but efficient hospitality space, its exposed ceiling infrastructure, suspended lights, and fixed furniture demanded precise documentation to support renovations and design updates.

Livrables

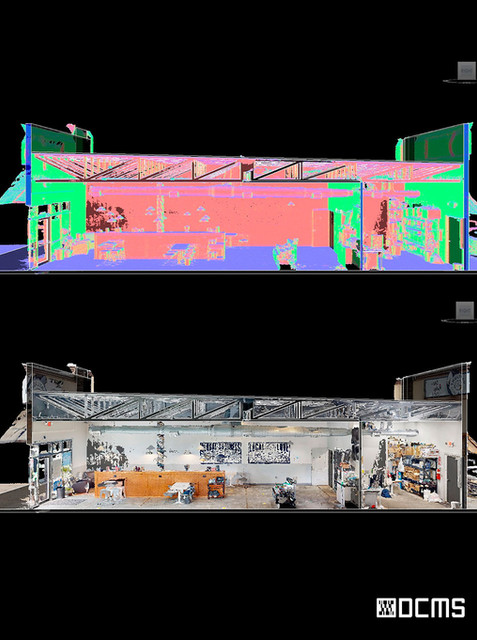

High-Resolution LiDAR Point Cloud: Accurate spatial data for as-built documentation

360° Digital Twin: Remote visualization tool for project stakeholders and designers

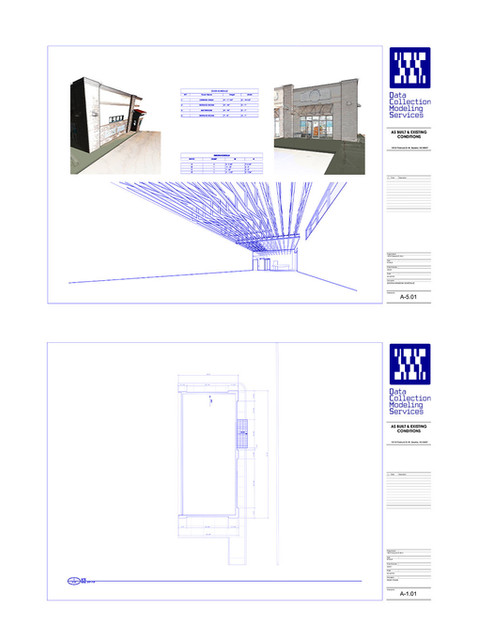

Architectural As-Built Documentation: Floor Plans, Reflected Ceiling Plans., Roof Plan, Cross-sections, Exterior Elevations, Window/Door Schedules

AutoCAD Drawings & PDF Sheets – Fully annotated and coordinated documentation

Notre rôle et notre technologie

DCMS used Matterport Pro3 scanners with LiDAR to capture the site, enabling a precise CAD package for layout adjustments and planning. The survey ensured dimensional fidelity and provided designers with a reliable digital twin.

Modeled walls and key elements directly from scan data and virtual walkthrough

Documented exposed ceilings with ducts, beams, and suspended lighting in detail

Delivered CAD sheets showing customer, prep, and storage areas with clarity

Principaux défis et solutions

Tall exposed infrastructure: Beams, ducts, and lights modeled precisely with LiDAR data

Compact multifunction layout: Efficient zoning balanced customer, prep, and service areas

Scan-to-CAD workflow: Generated reliable outputs for planning, compliance, and fit-out

Obtenir un devis

NOTRE FLUX DE TRAVAIL : Numériser, Traiter,
Modélisation et livraison 3D

John Burgess

Architectural Designer

“DCMS delivered the as-builts quickly, on time and with clarity.”

We only needed the as-builts, and DCMS handled everything with great efficiency. The on-site visit was completed within just a few hours, and the final drawings were delivered exactly as promised. This fast and precise workflow ensured we had the documentation ready for our next steps without delay.
