WAREHOUSE FACILITY IN BROOKLINE

Brookline, Massachusetts

51,542 sq. ft.

Nov 11 - Nov 25 | 2024

As-Built Plans

Aperçu du projet

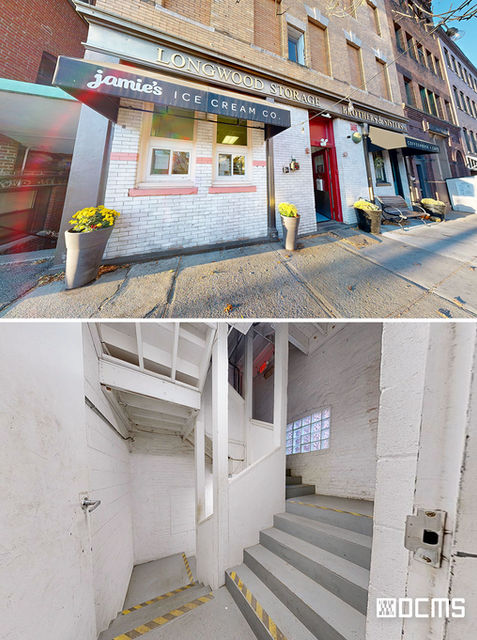

DCMS conducted a full-scale as-built survey of a seven-story commercial storage facility located at 5-7 Station Street in Brookline, Massachusetts. The 51,542 sq. ft. warehouse includes irregularly shaped floorplates, split-level units, and exposed MEP systems throughout. Situated in a high-traffic urban zone, the site supports diverse storage needs and required detailed spatial documentation to aid ongoing facility upgrades and long-term operational planning.

Livrables

High-Density Point Cloud Data

Matterport Virtual Walkthrough: Interactive 360° Digital Twin

Architectural As-Built Documentation: Floor Plans, Reflected Ceiling Plans, Elevations

CAD Drawings & PDF Sheets: Fully annotated and organized per level

Notre rôle et notre technologie

DCMS developed a comprehensive as-built package by integrating high-resolution scans and precise modeling workflows.

LiDAR-based 3D scanning performed with Matterport Pro3 to generate consistent point cloud data across all seven floors

Revit model created with detailed geometry of each unit, staircase, sublevel, and vertical infrastructure

Fully annotated AutoCAD sheets prepared for submission, including levels, dimensions, and layout logic

Principaux défis et solutions

Irregular Floor Geometry: Non-standard layouts across levels were accurately modeled using point cloud alignment and cross-referencing

Low-Light Conditions: Strategic scanner placement and post-processing corrected visibility in dimly lit or obstructed zones

Detailed Unit Mapping: Each storage unit’s door and structure was independently modeled for operational clarity and future design actions

Obtenir un devis

NOTRE FLUX DE TRAVAIL : Numériser, Traiter,
Modélisation et livraison 3D

David Williams

Director of Market Development at SSG Development, LLC

"The scope grew, and DCMS kept up at every step"

What started as a simple floor plan request quickly expanded and DCMS handled every additional deliverable with speed and accuracy. Having the scan made it easy to request more.
